自動控制零件項目 Part item

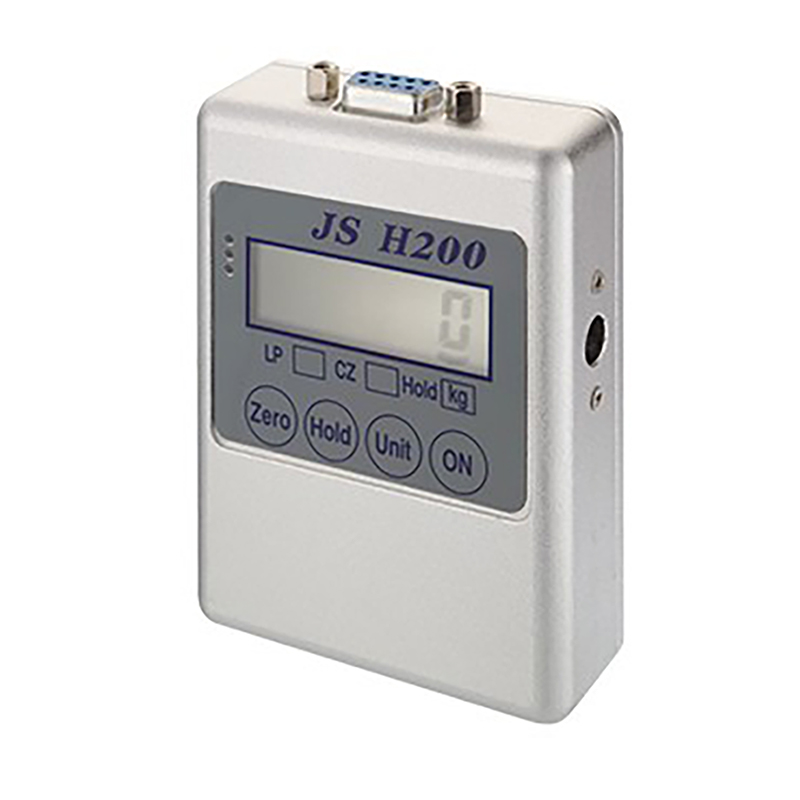

JS-H200掌上顯示器

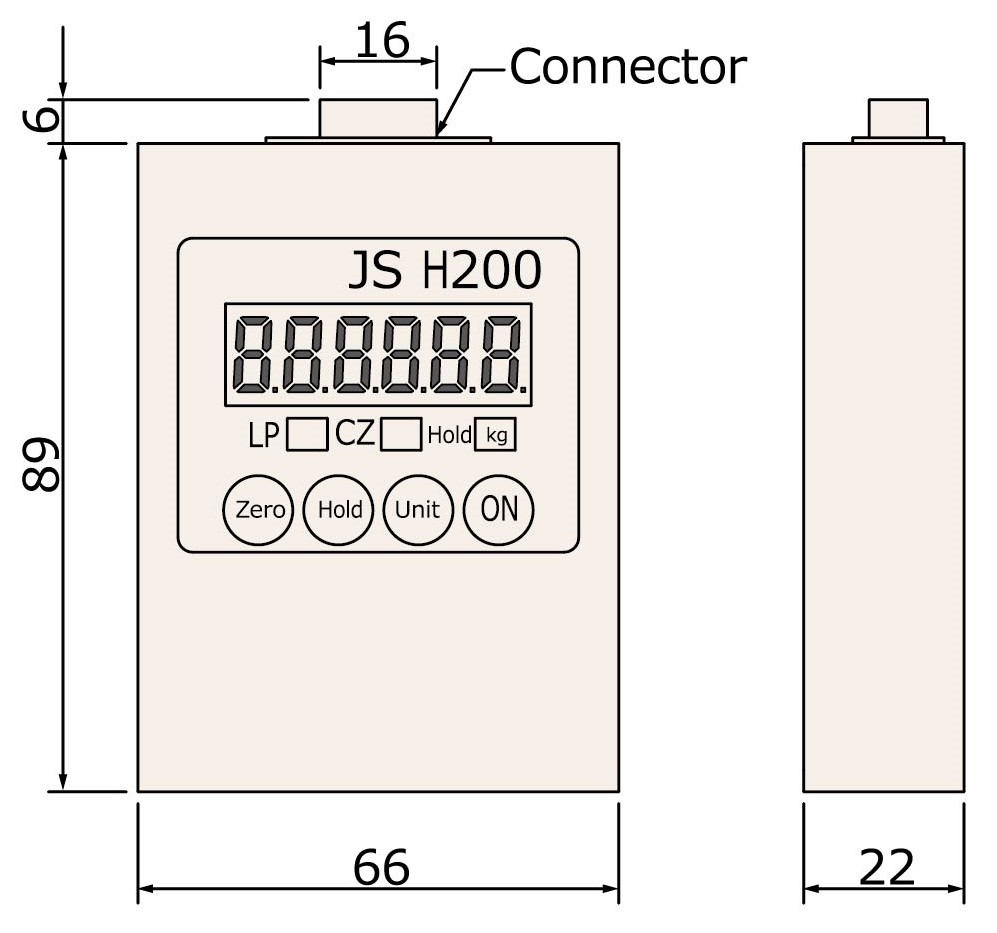

安裝尺寸 Installation Dimensions

功能說明 Function descrption

本顯示器係高功能、高精度之掌上型顯示器,針對應變規式感測器所設計。有絕佳的穩定性,可配合各種應變規式感測器。本顯示器使用LCD顯示螢幕A-D 最高解析度可達20000,最快每秒取樣500 次,使高點保持數值正常穩定。並可設定三種顯示單位,特別設計的省電線路和自動斷電功能,增強電池使用時間,採用高強度鋁合金外殼,總重量低於 300 克,真正實現走到哪量到哪的夢想。

This handy indicator is specially designed for strain gage type sensor. It is highly stable and accurate. resolution is + / - 20000 counts and max. sampling rates is 500 Hz. Thus the max. hold value will be very precise. It can set 3 display units. Specially designed low power consuming circuit and auto - power off function greatly increase battery life. The aluminum alloy casing is stiff and high. Total weight is less than 300 g. Easy to carry and measure anywhere.

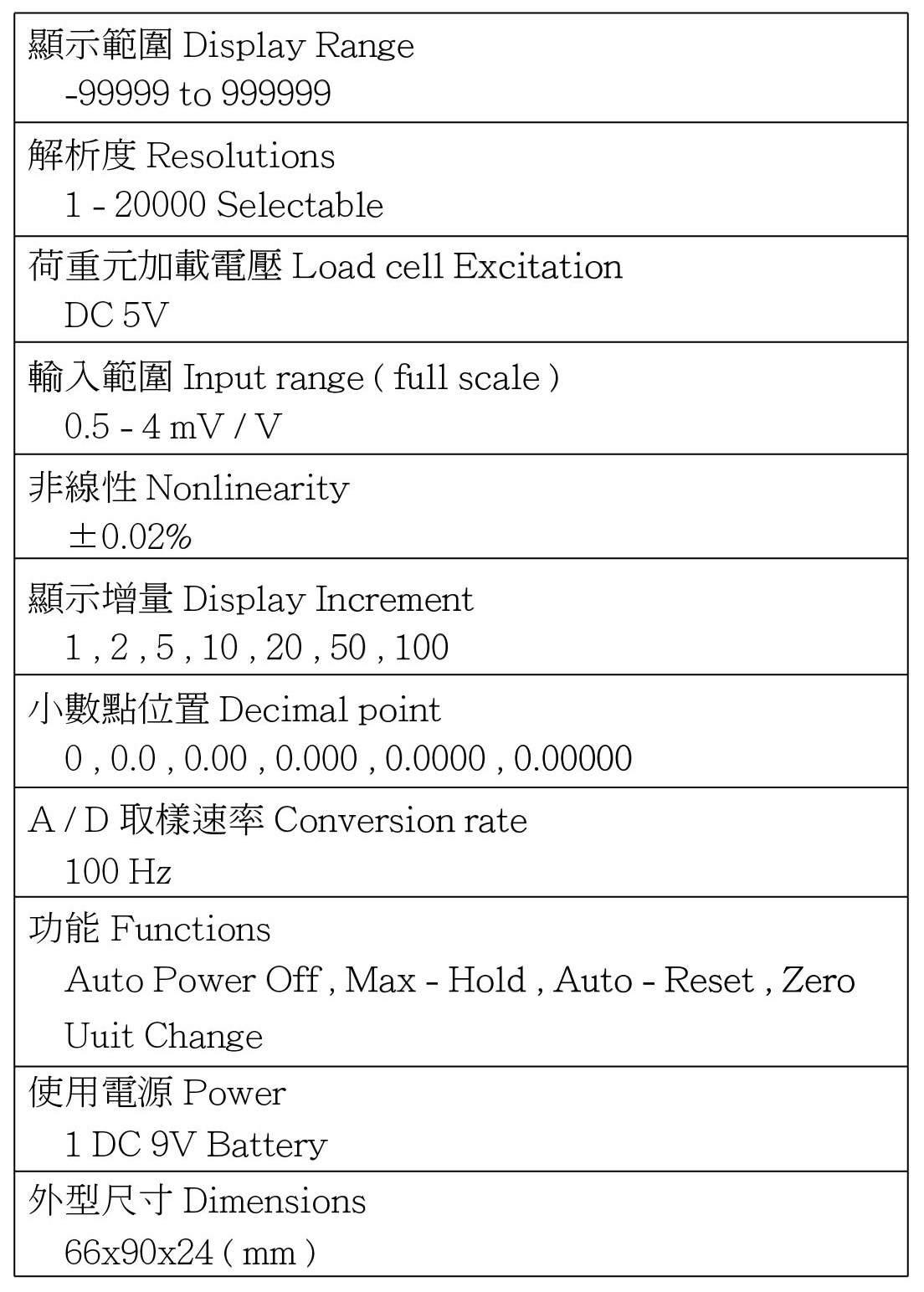

規格 Specification
