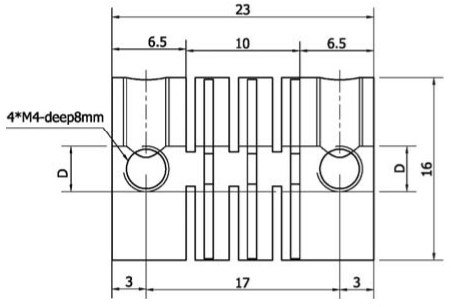

Inside Hole Diameter øD 內孔尺寸 ( mm )

4 and 4 ; 6 and 6

Mounting 安裝

M4 x 4

Wrench Torque 扭矩 ( N.m )

0.3

Mass** 質量 ( g )

4.5

Rated Torque 一般扭力 ( N.m )

1.0

Max. Rotational Frequency 最高回轉速 ( N.m / deg )

0.002

Moment* of Inertia 慣性 ( g . cm )

1.3

Static Tortional Stiffness 鋼性靜扭力值 ( N.m / rad )

16

Errors of Angularity 容許偏角 ( ° )

5

Errors of Eccentricity 容許偏心 ( mm )

0.4

Operating Temp

70°C

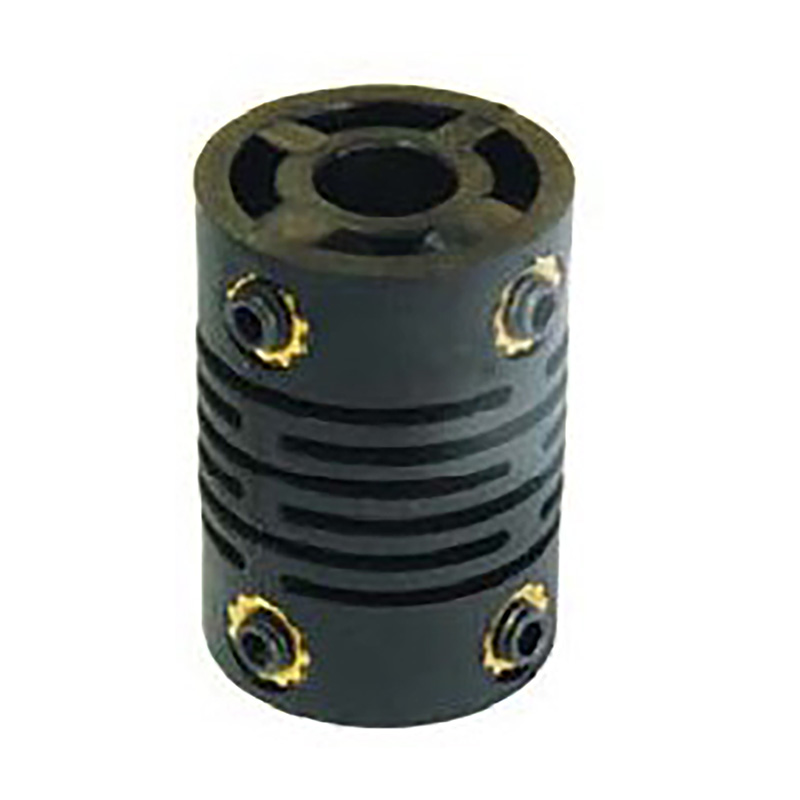

One - body shape 一體成型

Zero backlash 零背隙

Resisting acid and basic 耐酸鹼

High insulation 絕緣佳

High deflection 偏角誤差較佳

To suit of Encoder 適合用於 ENCODER

Fixed mode : Set screw type 固定方式 : 固定螺絲式

MATERIAL 材質

PLASTIC 塑膠
